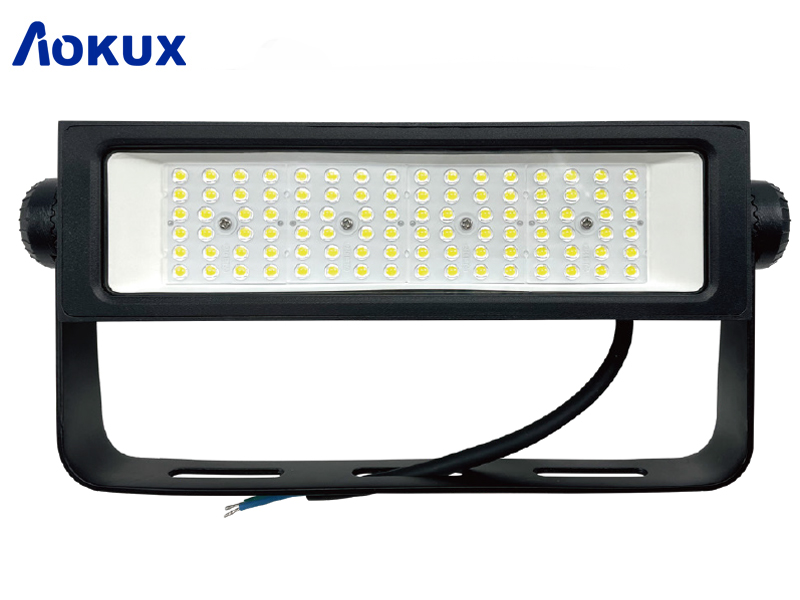

Heliport flood light is used to illuminate helideck in the night, It is specially designed for helipads, providing glare-free, uniform surface lighting for landing and loading activities. LED Surface Floodlights improve pilot depth perception by reflecting the surface of the helipad, allowing pilots to better estimate their altitude during landing.
Heliport Flood Light was used with other kind of heliport light, such as FATO heliport light, TLFO heliport light, Heliport Aiming point light, heliport inset light etc.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.9
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. LED as light source saving power consumption and maintenance.
2. Power supply available in AC(110-240 VAC), DC 48V.
3. LED Lumen is more than 130lm/w.
4. 60/90 degree beam angle with lens design.
5. Die-casting aluminum casing, good heat dissipation.
6. Easy to move and install.
7. IP66 waterproof.
8. Max height less than 25cm
9. 50W/75W/100W design,more bright.
Specification:
High-strength tempered glass, square lens, lens angle: 15, 30, 60, 90, 120, optional polarized light, no screws on the product face frame, beautiful appearance
Material is ADC12 die-cast aluminum, heat dissipation ratio 1:750G
Adopt Taiwan Meanwell power supply, stable voltage, short circuit, overload, over temperature protection, waterproof design.
Size:
Application:
Helipad/Heliport FATO areas
Helipad Runway
Heliport flood light
Helipad taxiway
Heliport Flood Light was used with other kind of heliport light, such as FATO heliport light, TLFO heliport light, Heliport Aiming point light, heliport inset light etc.
1. ICAO Annex 14 Volume II Heliports 5.3.9
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. LED as light source saving power consumption and maintenance.
2. Power supply available in AC(110-240 VAC), DC 48V.
3. LED Lumen is more than 130lm/w.
4. 60/90 degree beam angle with lens design.
5. Die-casting aluminum casing, good heat dissipation.
6. Easy to move and install.
7. IP66 waterproof.
8. Max height less than 25cm
9. 50W/75W/100W design,more bright.
Specification:
| Model NO.: | AO-HP-F3 |
| Light Source | High lumen LED |
|
Perimeter Light Colors |
White |
|
Luminous flux |
130lm/w |
|
Degrees |
15°/30°/60°/90° with lens and reflector design |
|
Flash Characteristics |
Steady burning |
|
Operation Mode |
24 hours operation |
|
LED Life Experience(hours) |
>100,000 |
|
Operating Voltage |
110-240VAC, 48VDC, 24VDC or others |
|
Power(W) |
50W/75W/100W |
|
Body Material |
Aluminum alloy |
|
Casing color |
Black |
|
Dimension(mm) |
315x115x91cm |
|
Weight(kg) |
2.3KG |
|
Product Life |
5 years Plus |
|
Ambient Temperature(℃) |
-55℃~+70℃ |
|
Humidity |
0%-100% |
|
Wind Speed |
80m/s |
| IP grade | IP66 |
|
Driver |
Meanwell |
High-strength tempered glass, square lens, lens angle: 15, 30, 60, 90, 120, optional polarized light, no screws on the product face frame, beautiful appearance
Material is ADC12 die-cast aluminum, heat dissipation ratio 1:750G
Adopt Taiwan Meanwell power supply, stable voltage, short circuit, overload, over temperature protection, waterproof design.
Size:
Application:
Helipad/Heliport FATO areas
Helipad Runway
Heliport flood light
Helipad taxiway
