An airport beacon light is a powerful rotating or flashing signal that serves a crucial function in ensuring aviation safety and aiding pilot navigation. Typically installed on control towers or elevated structures at airports and heliports, these beacons are especially important during nighttime operations or adverse weather conditions, when visibility is significantly reduced.
These lights are usually activated from dusk until dawn, as well as during periods of low visibility—defined as less than 3 miles—or when cloud ceilings fall below 1,000 feet. In many modern systems, airport beacons are automatically managed or remotely controlled by air traffic control to provide essential visual cues to pilots.
Aokux AO-AP-R2 airport beacon lights led rotating beacon light aviation 120v rotating beacon light aerodrome rotating beacon airfield rotating beacon led rotary beacon.
Overview:

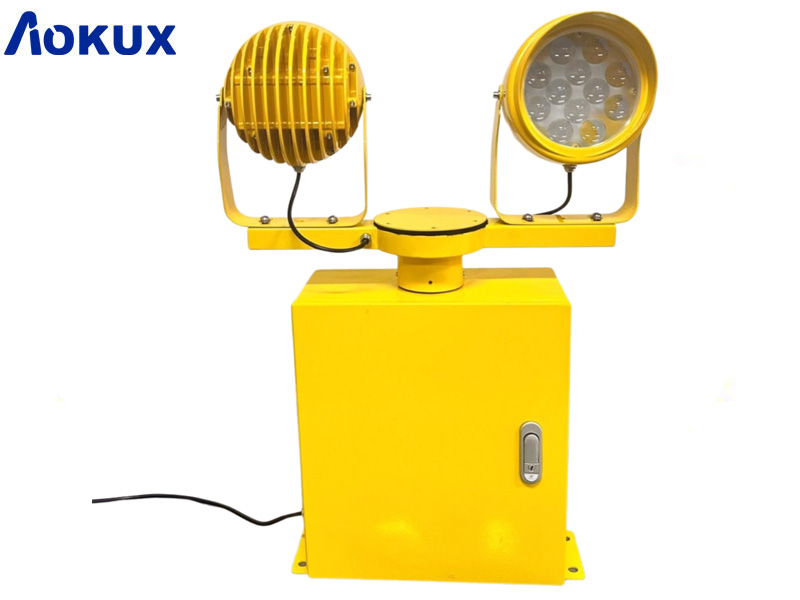

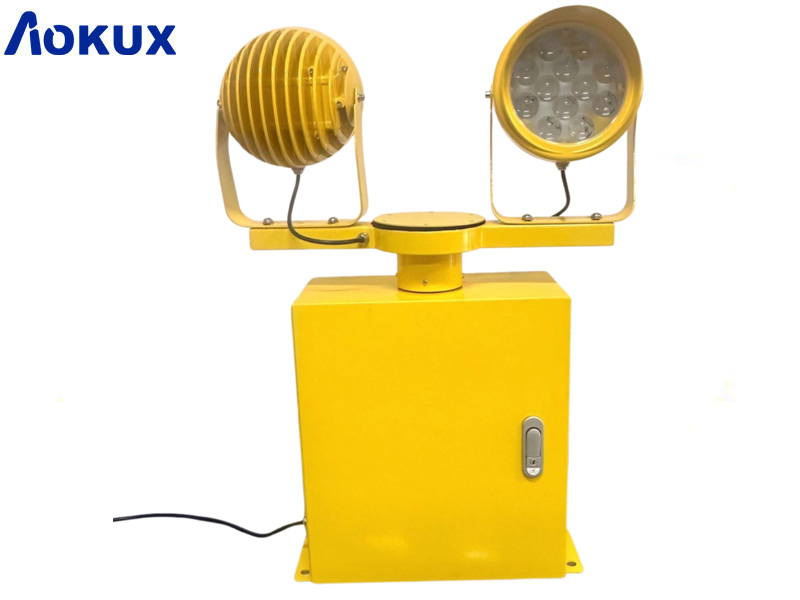

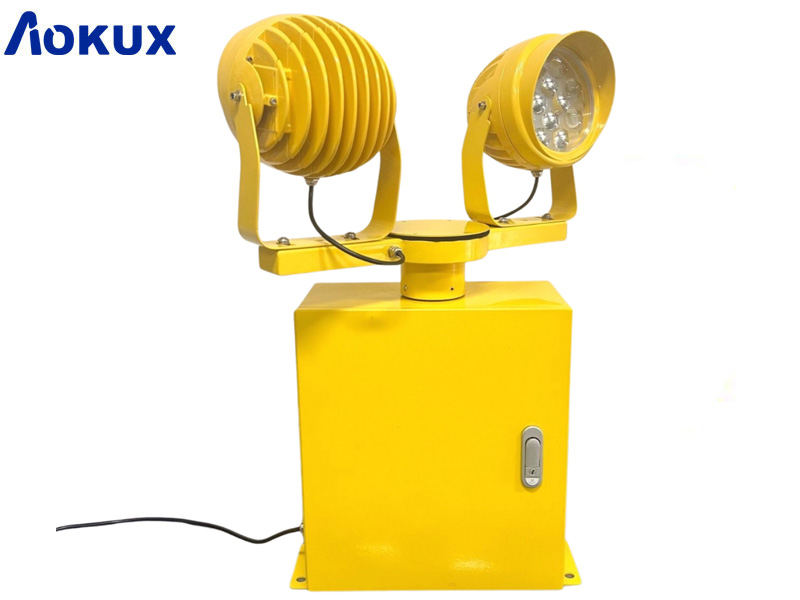

The AO-AP-R2 LED Rotating Beacons are specifically engineered for nighttime use, serving as visual markers to help identify and locate airports. Their main purpose is to assist pilots in spotting the airport from a distance, acting as a key navigational aid—particularly during Visual Flight Rules (VFR) operations. These beacons emit rotating light signals with specific colors and flash patterns that communicate vital information to approaching pilots, enhancing situational awareness during the approach phase.
Compliance:
1. ICAO Annex 14 Volume I 5.3.3( ICAO: Aerodromes, Annex 14, Vol. 1, 8th Ed. Photometry - Ch. 5 Sec.
5.3.3.6 and 5.3.3.7)
2. FAA: L-801 A/C150/5345-12
Features:
1. Adopt super bright brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. 100,000 hour typical LED light source life..
4. One white color, another yellow color.
5. Impedance-protected motor eliminates burnouts.
6. 12RPM rotation, 24 flashes/minute.
7. Weatherproof stainless steel cabinet, powder-coated yellow.
8. Less light pollution, defined light beam has less light “wash”.
9. No maintenance.
Specification:
|
Product Name |
Aokux AO-AP-R2 airport beacon lights led rotating beacon light aviation 120v rotating |
|
Mode NO.: |
AO-AP-R2 |
|
Color: |
White and Yellow(others are optional) |
|
Light source:
|
LEDs |
|
Light lumen/ intensity: |
>14000lm/ >25000cd |
|
Operation mode: |
Steady burning |
|
Installation type: |
Surface mounting |
|
Flashing Characteristics:
|
12RPM(Revolutions Per Minute), 24 flashes per minute
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Light Head: |
2pcs light heads |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated stainless steel |
|
Weight(kg): |
22kg |
|
IP Grade: |
IP65 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Power: |
Each LED head<50W, system power<200W |

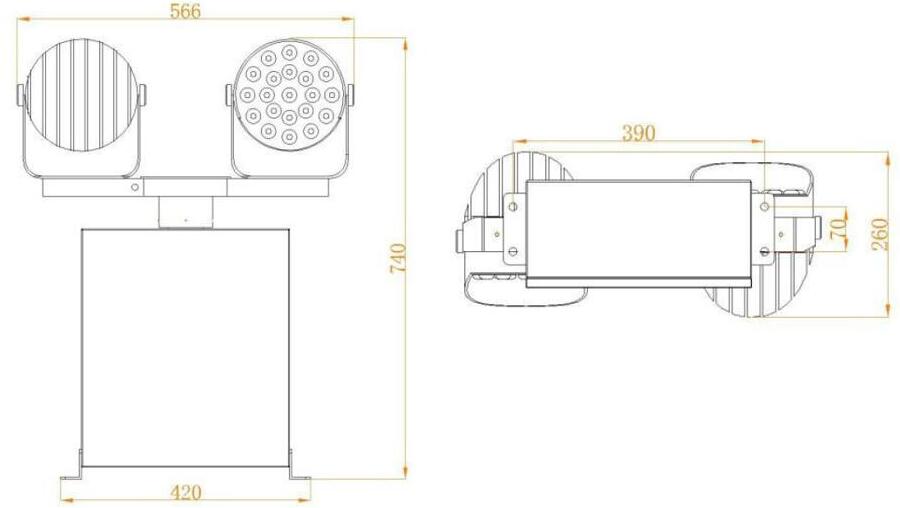

Dimension & Installation:
Applications:
The Aokux AO-AP-R2 Airport Beacon Light is a high-efficiency LED rotating beacon engineered to support airport identification and navigational guidance. It delivers intense, rotating light beams to ensure maximum visibility during nighttime operations or in reduced visibility conditions. Suitable for civilian airports, military airfields, and heliports, this aviation-grade beacon provides dependable long-range signaling to assist pilots in orientation and approach.
