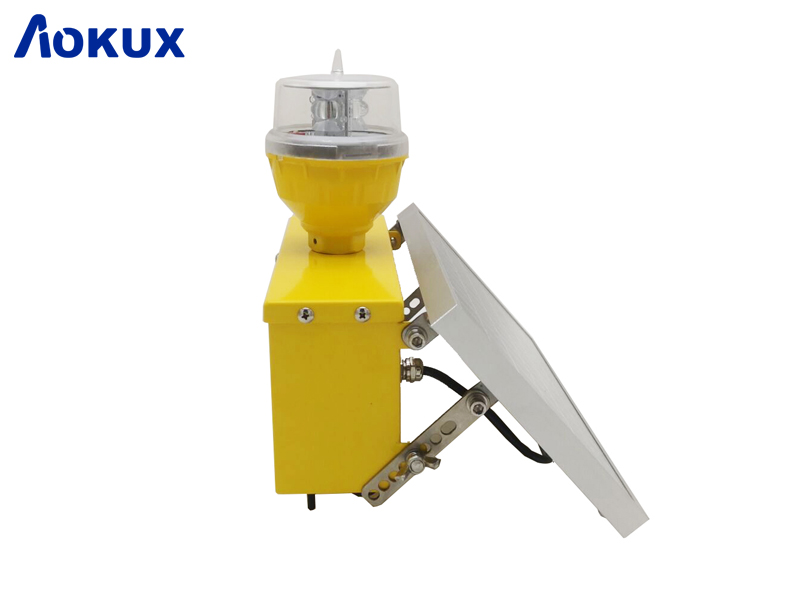

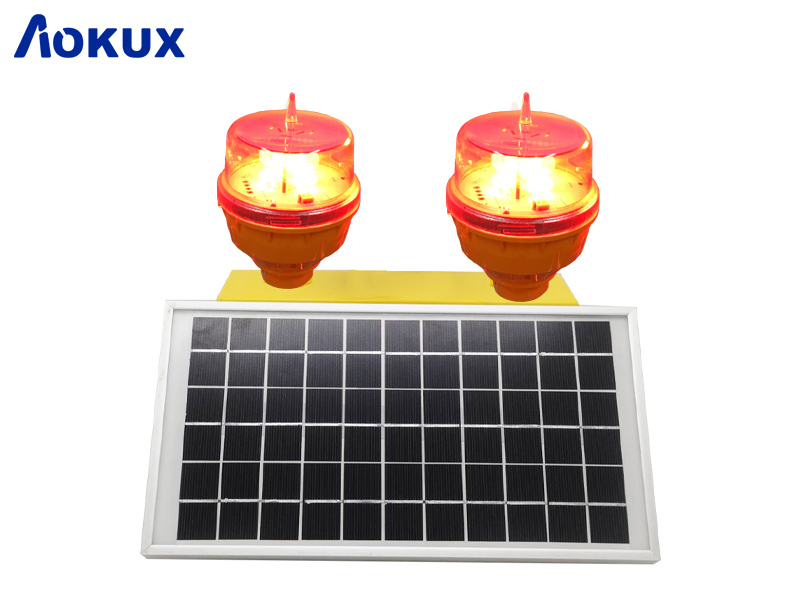

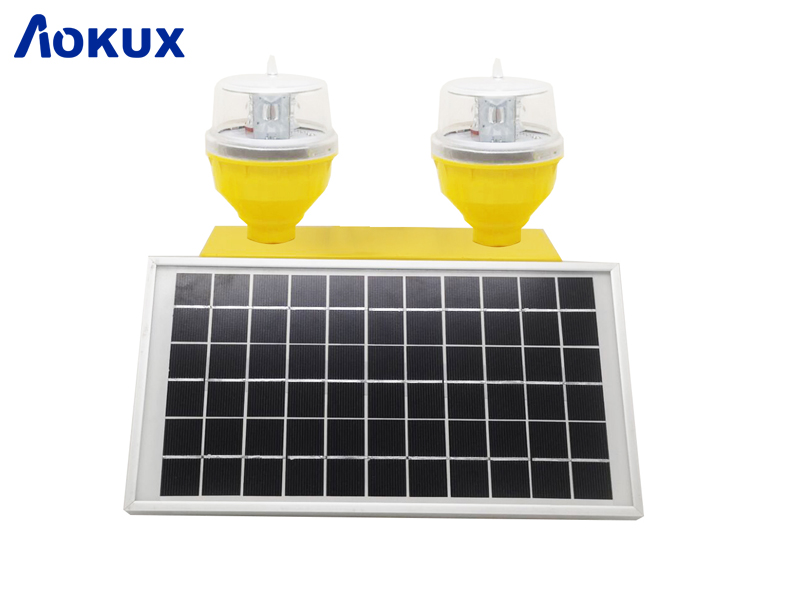

Model AO-SLI-T1 is a Low-intensity twin Solar Aviation Obstruction light ,This LED Low-intensity Double Solar Aviation Obstruction light is adopting high efficient mono crystalline silicon solar panel, cooperate with solar dedicated lithium ion battery as power supply.

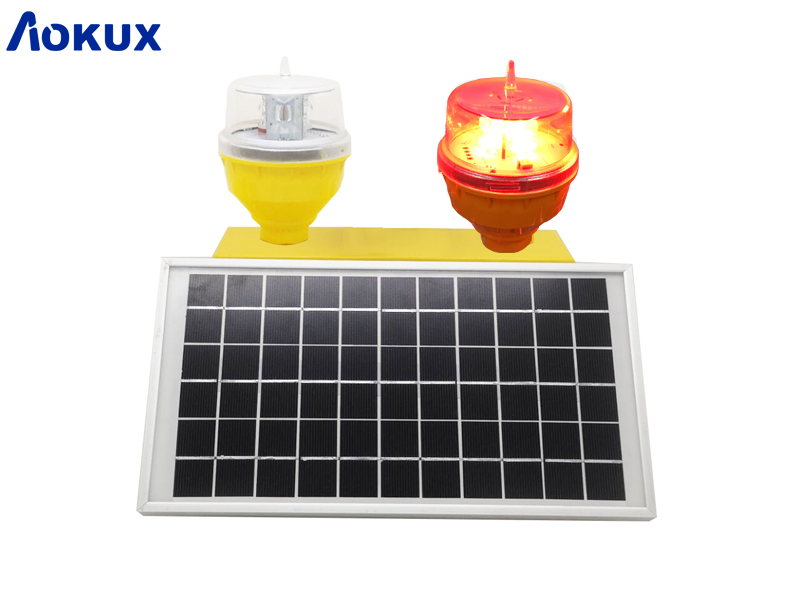

There are two lamps on the battery box, one is main lamp, another is standby. When main lamp fail, standby light turn on automatically. 3/4inch thread hole under base is very suitable for pole mounting.
Compliance:
1. ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstruction Light.
2. FAA L-810.
Features:
1. LED as light source, life experience >100,000 hours.
2. With bird needle to prevent bird drop.
3. UV & vibrations protected polycarbonate lens for converging light.
4. Stainless steel 304 base, light fastness, resist snow and rain.
5. Battery box made of corrosion resistant 304 stainless steel.
6. Mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
7. Solar panel angel is adjustable (Vertical 15-90°).
8. Solar panel as photocell (Photo diode) for day & night working mode (dusk to dawn mode).
9. ON/OFF button under base make local control easy.
10. Flashing(20fpm)/steady toggle switch under base.
11.Main-standby mode
Specification:
Dimension: Installation:
Application:
1. AO-SLI-T1 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
2. Used alone on the top of obstacle which height is less than 45m.
There are two lamps on the battery box, one is main lamp, another is standby. When main lamp fail, standby light turn on automatically. 3/4inch thread hole under base is very suitable for pole mounting.
Compliance:
1. ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstruction Light.
2. FAA L-810.
Features:
1. LED as light source, life experience >100,000 hours.
2. With bird needle to prevent bird drop.
3. UV & vibrations protected polycarbonate lens for converging light.
4. Stainless steel 304 base, light fastness, resist snow and rain.
5. Battery box made of corrosion resistant 304 stainless steel.
6. Mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
7. Solar panel angel is adjustable (Vertical 15-90°).
8. Solar panel as photocell (Photo diode) for day & night working mode (dusk to dawn mode).
9. ON/OFF button under base make local control easy.
10. Flashing(20fpm)/steady toggle switch under base.
11.Main-standby mode
Specification:
| Model NO.: | AO-SLI-T1 |
| Light Source | LED |
|
Available Colors |
Red(Other color is optional) |
|
Light Intensity(cd) |
32.5cd |
|
Horizontal Output(degrees) |
360 |
|
Vertical Divergence(degrees) |
≥10 |
|
Flash Characteristics |
Steady/Flashing(20fpm) adjustable |
|
Operation Mode |
Main-standby, Dusk-to-Dawn operation |
|
LED Life Experience(hours) |
>100,000 |
|
Operating Voltage |
12V DC |
|
Power(W) |
5W |
|
Circuit Protection |
Integrated |
|
Solar Module Type |
Mono crystalline Silicon |
|
Charging Regulation |
Microprocessor controlled |
|
Battery type |
Lithium ion battery |
|
Nominal Voltage (V) |
12V |
|
Battery Service Life |
Average 3 years |
|
Battery Capacity(AH) |
9 |
|
Autonomy (hours) |
Steady: 80, Flashing: 200 |
|
Lamb Body Material |
UV protected Polycarbonate |
|
Base Material |
Stainless steel 304 |
| Installation Size | 3/4 inch thread |
|
Overall Size (mm) |
243×300×268 |
|
Product Life Expectancy |
Average 5 years |
|
Weight(kg) |
4KG |
|
Ambient Temperature(℃) |
-55~70 |
|
Humidity |
0~90% |
|
Wind Speed |
80m/s |
|
Waterproof |
IP67 |

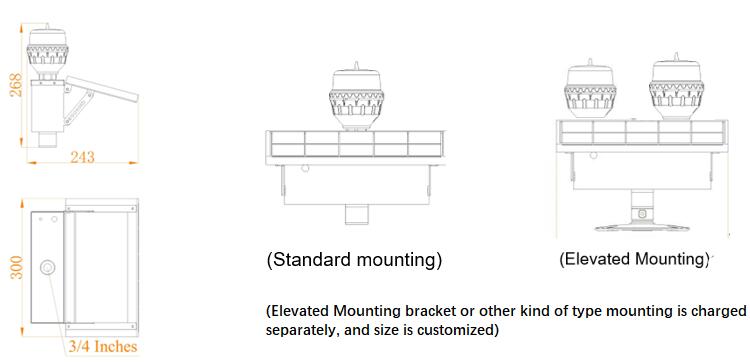

Dimension: Installation:
Application:
1. AO-SLI-T1 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
2. Used alone on the top of obstacle which height is less than 45m.
