The AO-RB-G4X transponder is highly reliable and robust, capable of withstanding harsh maritime environments. It features low power consumption, making it suitable for remote and unattended installations where power resources are limited. The device is engineered to automatically activate upon detecting incoming radar signals within its operational range, ensuring continuous and seamless operation.
Additionally, the AO-RB-G4X is designed with ease of integration in mind, offering compatibility with a wide range of radar systems. Its compact and lightweight design simplifies installation on various platforms, whether mounted on stationary structures or mobile units. With its advanced technology and durability, the AO-RB-G4X is an essential tool for enhancing safety in marine navigation, providing reliable radar conspicuity and ensuring that key navigational aids are prominently displayed on radar screens, thereby reducing the risk of collisions and enhancing overall situational awareness for mariners.
Overview:

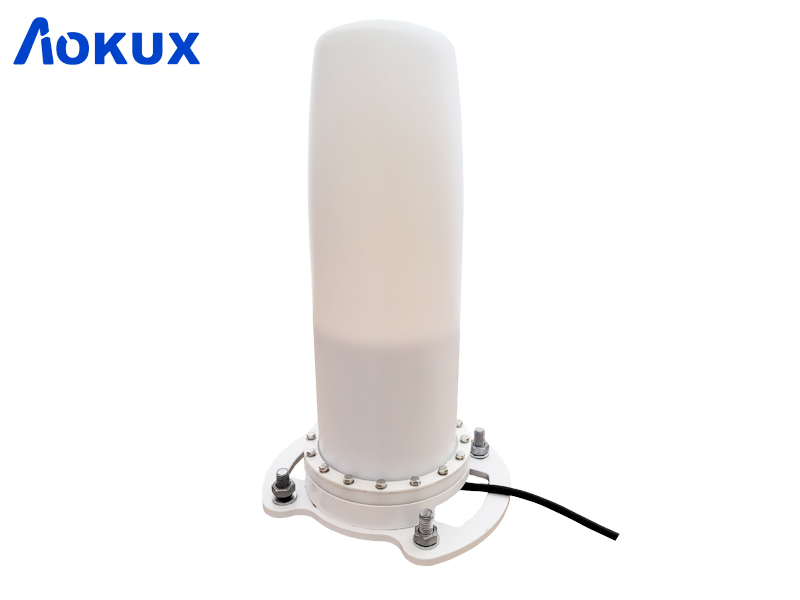

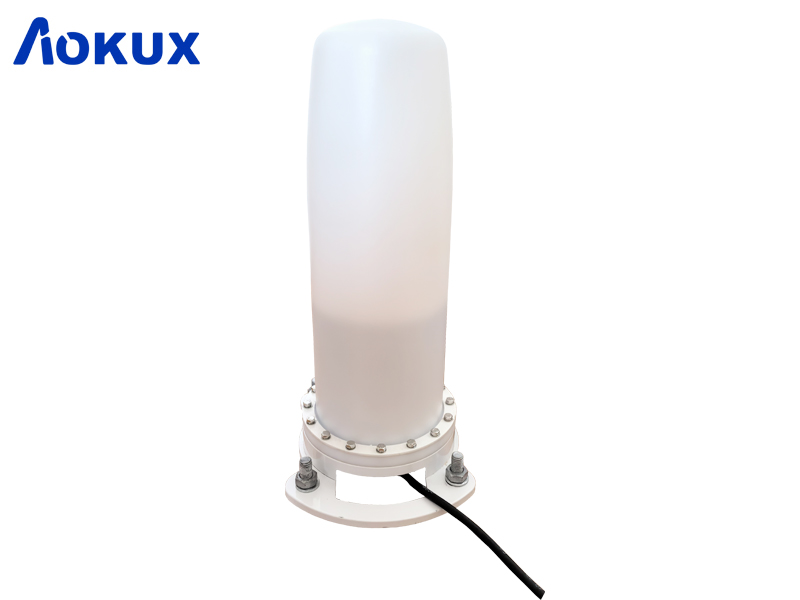

The Racon beacon X band radar beacon transponder radar conspicuous beacon radar racon single band AO-RB-G4X is a single-band Racon (Radar Beacon) designed for use in the X-band frequency, enhancing radar visibility in marine navigation. This transponder activates upon detecting radar signals, transmitting a distinct identification code that appears prominently on radar screens, marking critical navigational aids like buoys or lighthouses. Built for reliability in harsh maritime environments, the AO-RB-G4X features low power consumption, making it ideal for remote installations. Its compact design ensures easy integration with various radar systems, providing essential radar conspicuity to improve safety and situational awareness at sea.
Compliance:
1. IALA Recommendations and IMO Standards.
Features:
1. This is a single band radar beacon response on X band.
2. Racon radar high transmit power, greater receive sensitivity gives long service range.
3. The length of the Morse code response matches the display range setting by programming the duration of the answer according to the pulse length before installation.
4. Automatic response length.
5. Wide power supply range 9-36V DC.
6. Low power consumption radar beacon transponder.
7. Light weight radar transponder beacon.
8. Transient over-voltage and reverse polarity protections.
9. Maintenance free racon beacon.
Specification:
|
Product Name |
Racon beacon X band radar beacon transponder radar conspicuous beacon radar racon single band AO-RB-G4X |
|
Mode NO.: |
AO-RB-G4X |
|
Frequency range: |
X band(9300~9500MHz) |
|
Receptor sensitivity(adjustable):
|
X band: - 35dBm～－ 50dBm |
|
Antenna: |
X band: Gain: 9dB; Horizontal: 360º (±1dB); Vertical: 20º. |
|
Polarisation: |
X band: Horizontal. |
|
Input voltage: |
DC 9-36V |
|
Power consumption:
|
Standby condition: 0.6W;
Working: 3-5W
|
|
Response encoding: |
16 types Morse codes |
|
Output power: |
Typical ≥ 1W (X and S bands) |
|
Speed response: |
X Bnad: 10 KHz |
|
Frequency Precision: |
≤ ±2 MHz |
|
Response delay: |
≤ 0.05μS |
|
Communications and programming: |
RS232 or RS485 |
|
Materials: |
316 stainless steel and polyamide |
|
Work environment: |
-40℃~+80℃, Humidity 0%-100% |
|
Weight: |
3kg |
|
IP Grade: |
IP67 |
|
Recognition range: |
5/10nm in any direction. |

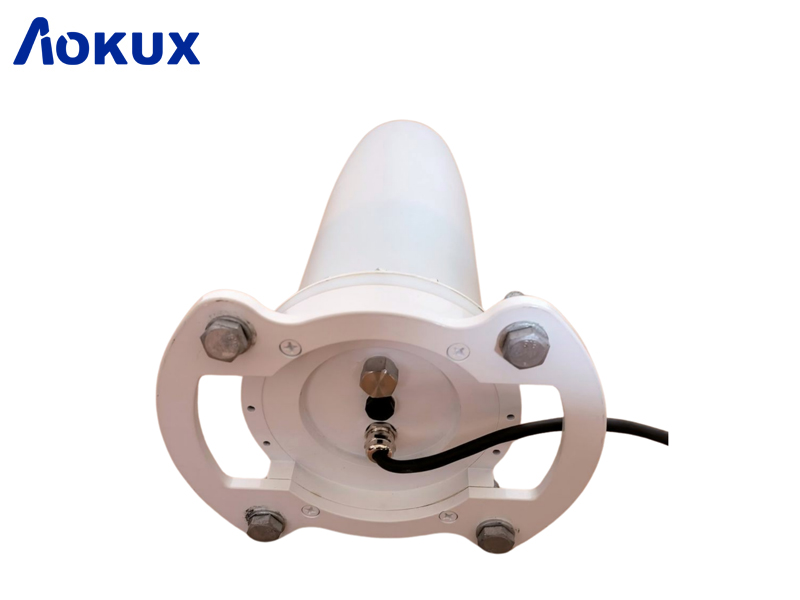

Dimension & Installation:

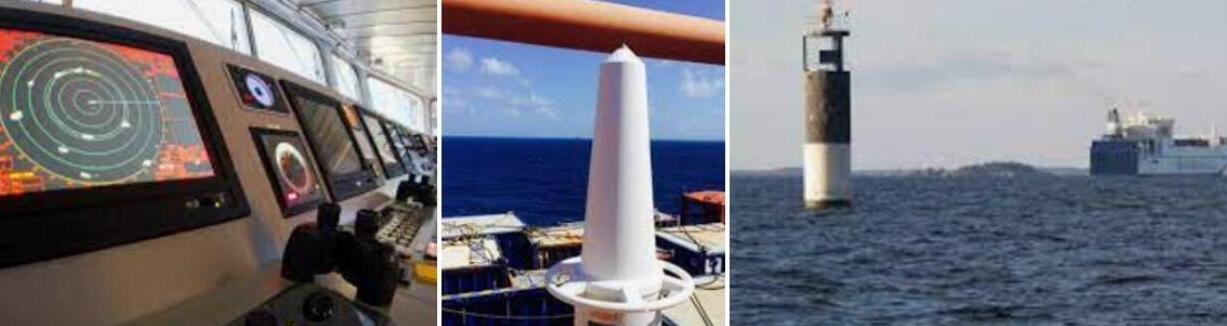

Applications:
The Racon beacon X band radar beacon transponder radar conspicuous beacon radar racon single band AO-RB-G4X is a versatile and reliable single-band transponder, operating in the X-band radar frequency, and is primarily utilized in a variety of maritime and coastal applications. Its primary function is to enhance the radar conspicuity of key navigational aids, ensuring they are easily identifiable on radar screens, particularly in challenging environments where visibility may be compromised.
Maritime Navigation: The AO-RB-G4X is widely used in maritime navigation to mark critical structures such as buoys, lighthouses, and offshore platforms. By transmitting a unique signal in response to radar waves, the beacon makes these structures highly visible on radar displays, aiding in safe navigation and reducing the risk of collisions in busy or hazardous waters.
Ports and Harbors: In ports and harbors, the AO-RB-G4X can be installed on harbor entrance markers, channel markers, and breakwaters. This ensures that vessels can safely navigate into and out of ports, even in poor weather conditions, low visibility, or at night. The beacon helps delineate safe passages and warns of potential dangers.
Offshore Installations: Offshore oil rigs, wind farms, and other critical infrastructure benefit from the AO-RB-G4X by making these installations more conspicuous on radar. This is crucial for the safety of both the installation itself and the vessels operating in proximity, as it helps prevent accidental collisions.
Coastal Monitoring Stations: Coastal monitoring and research stations often use the AO-RB-G4X to improve their visibility on radar, particularly in remote or isolated areas where traditional navigational aids may be sparse. This application enhances safety for vessels operating near these stations.
Deployment Locations
The AO-RB-G4X can be deployed in various challenging environments, including:
High-traffic shipping lanes: To assist in the identification of navigational hazards.
Remote coastal regions: Where reliable radar visibility is essential for safe navigation.
Military zones: To mark important installations or areas that need to be easily identifiable on radar.
Overall, the AO-RB-G4X serves as a critical tool in enhancing maritime safety by providing clear and reliable radar identification of important navigational aids and infrastructure across a wide range of applications and environments.
