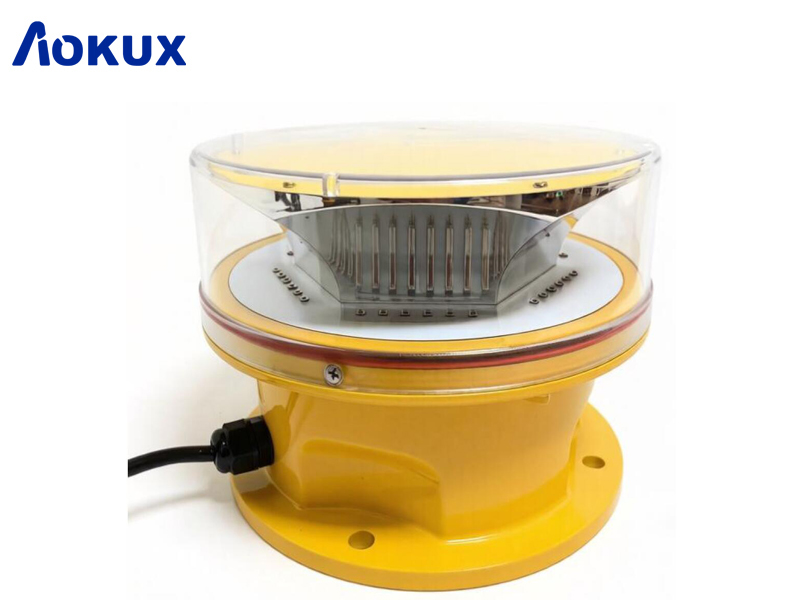

Model
AO-HP-B1, A heliport beacon should be provided at a heliport where
long-range visual guidance is considered necessary and is not provided
by other visual means; or identification of the heliport is difficult
due to surrounding lights.
The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range. AO-HP-B1 flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ).
Compliance:
1. ICAO Annex 14 Volume ǁ Heliports 5.3.2
2. FAA AC 150/5390-2B Heliport Design Guide
3. CAP 437
Features:
1.led as light source, service life more than 100000hrs.
2. Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
3. UV protection Powder coated bright yellow color base make better visibility.
4. Base material is aluminum which has strong corrosion resistance, Shock and Vibrations protection
5. Controller for power supplying and turn ON/OFF light.
Specification:

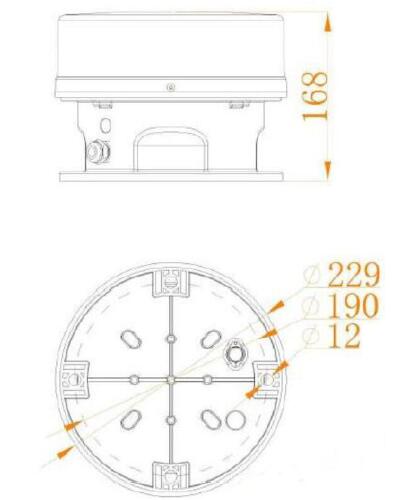

Dimension(MM):
Application:
Helipad/Heliport/Helideck
Heliport beacon
The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range. AO-HP-B1 flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ).
Compliance:
1. ICAO Annex 14 Volume ǁ Heliports 5.3.2
2. FAA AC 150/5390-2B Heliport Design Guide
3. CAP 437
Features:
1.led as light source, service life more than 100000hrs.
2. Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
3. UV protection Powder coated bright yellow color base make better visibility.
4. Base material is aluminum which has strong corrosion resistance, Shock and Vibrations protection
5. Controller for power supplying and turn ON/OFF light.
Specification:
| Model NO.: | AO-HP-B1 |
| Light Source | LED |
| Available Colors | White |
| Frequency | 50-60Hz |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | 4 quick flashes in 0.8s, off 1.2s(Morse code “H”) |
| Operation Mode | 24 hours operation |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | 220-240V AC |
| Power(W) | <12W |
| Body Material | UV protected Polycarbonate |
| Base Material | aluminium |
| Mounting | 190×190×12MM |
| Dimension(mm) | 220×220×233 |
| Base | Powder-coated Die-casting aluminum |
| Weight(kg) | 2KG |
| Product Life | 5 years Plus |
| Ambient Temperature(℃) | -55℃~+80℃ |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| IP grade | IP66 |
| Intensity |
>2500cd |
