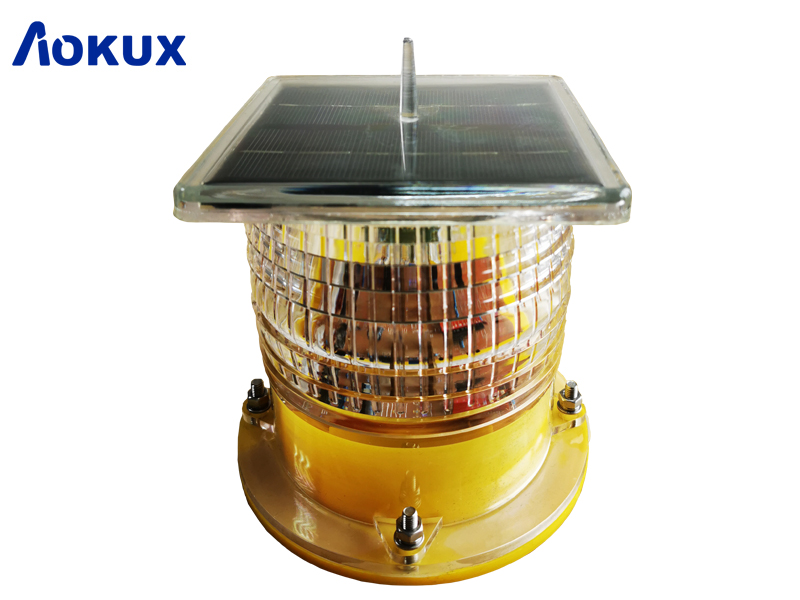

Model AO-SLI-S2 is a LED Low-intensity Solar Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. Built-in photocell ensure LED only working at night and closed in the daytime automatically. It is designed for marking top of obstacle that do not exceed 45 meters in height.
Compliance:
1. CAO Annex 14 Volume 1, Sixth edition, 2016, table 6.3 Low Intensity Obstruction Light.
2. FAA L-810.
1. LED as light source, life experience >100,000 hours.
2. With bird needle to prevent bird drop.
3. UV & vibrations protected polycarbonate lens for converging light.
4. Powder coated die casting aluminum base, light fastness, resist snow and rain.
5. Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
6. Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
7. Built-in photocell (Photo diode) for day & night working mode (dusk to dawn mode).
Specification:

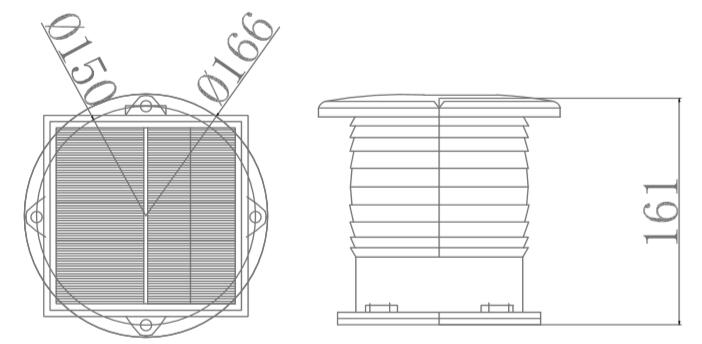

Dimension(mm):
Application:
1. Solar low intensity obstruction light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
2. Used alone on the top of obstacle which height is less than 45m.
Compliance:
1. CAO Annex 14 Volume 1, Sixth edition, 2016, table 6.3 Low Intensity Obstruction Light.
2. FAA L-810.
1. LED as light source, life experience >100,000 hours.
2. With bird needle to prevent bird drop.
3. UV & vibrations protected polycarbonate lens for converging light.
4. Powder coated die casting aluminum base, light fastness, resist snow and rain.
5. Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
6. Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
7. Built-in photocell (Photo diode) for day & night working mode (dusk to dawn mode).
Specification:
| Model NO.: | AO-SLI-S2 |
| Light Source | LED |
|
Available Colors |
Red/green/Yellow/White/blue |
|
Light Intensity(cd) |
32.5 cd (Flashing) |
|
Horizontal Output(degrees) |
360 |
|
Vertical Divergence(degrees) |
≥10 |
|
Flash Characteristics |
Flashing(20fpm) adjustable |
|
Operation Mode |
Dusk-to-Dawn operation |
|
LED Life Experience(hours) |
>100,000 |
|
Solar panel voltage |
3.7V DC |
|
solar panel Power(W) |
2W |
|
Circuit Protection |
Integrated |
|
Solar Module Type |
Mono crystalline Silicon |
|
Charging Regulation |
Microprocessor controlled |
|

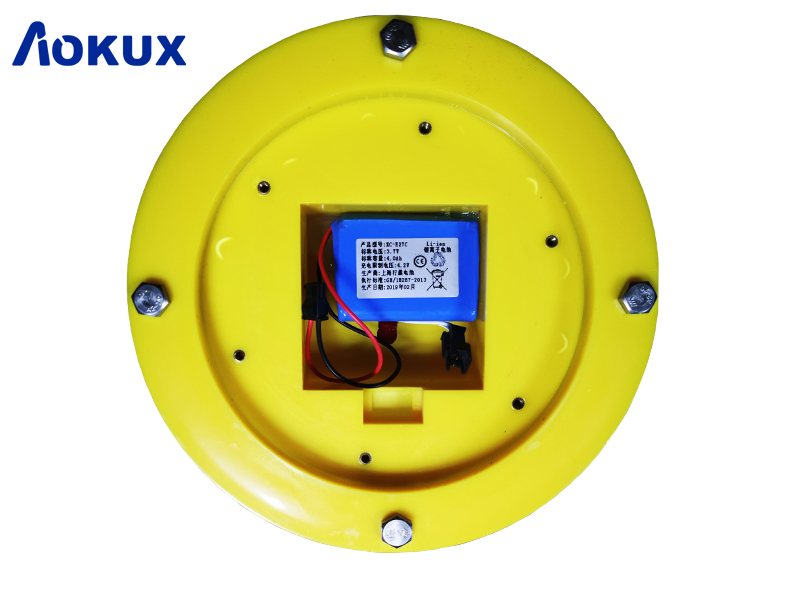

Battery type |
Lithium ion battery |
|
Battery capacity |
3.7V 4AH |
|
Battery Service Life |
>5 years |
|
Battery Capacity(AH) |
4AH |
|
Switch for ON/OF |
No, need open the cover to connect the plug. |
|
Lamb Body Material |
UV protected Polycarbonate |
|

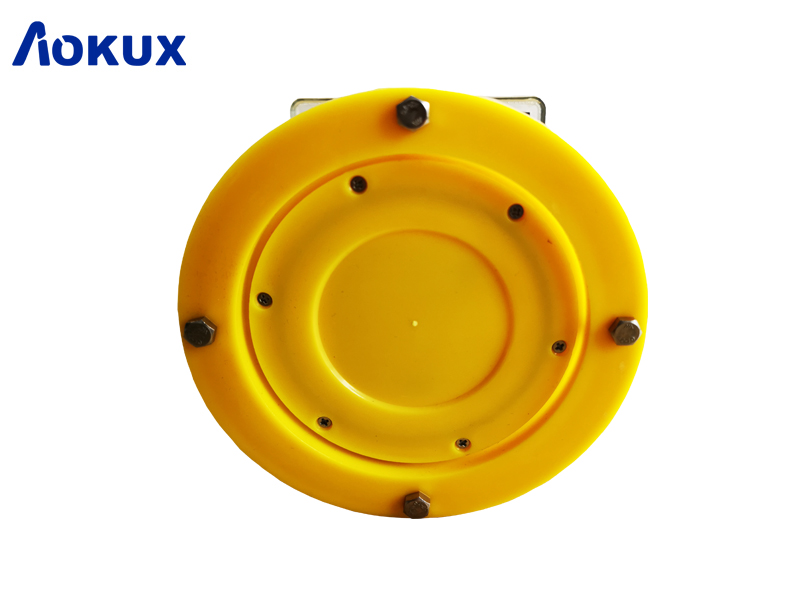

Base Material |
PC |
| Installation Height | 45m |
|
Overall Size (mm) |
165*165*200mm |
|
Product Life Expectancy |
> 5 years |
|
Weight(kg) |
0.8KG |
|
Ambient Temperature(℃) |
-40~+60 |
|
Humidity |
0~90% |
|
Wind Speed |
80m/s |
|
Waterproof |
IP67 |
Dimension(mm):
Application:
1. Solar low intensity obstruction light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
2. Used alone on the top of obstacle which height is less than 45m.
