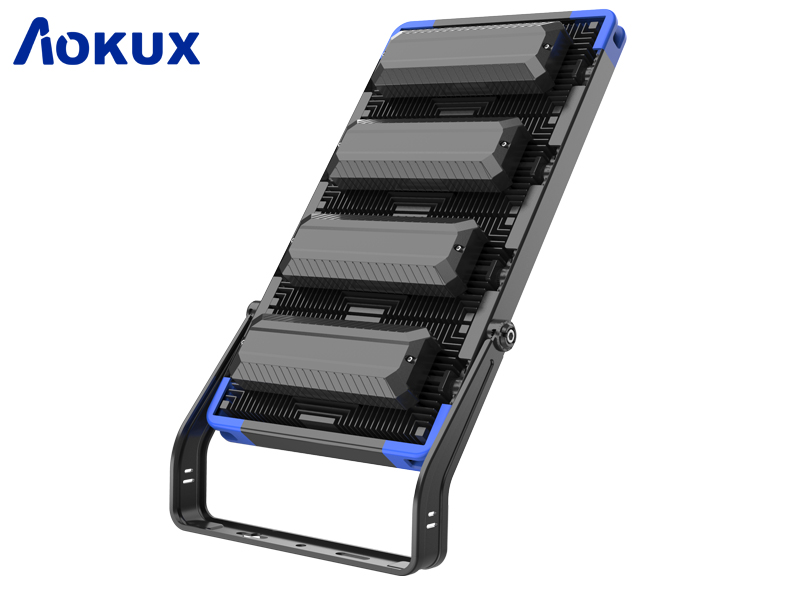

Model AO-HML-1000W is a new type High Mast Flood Light, It is specially designed to use on permanent airport/heliport or port. It can use severe environment.
Features:
1. High Mast Flood light heat sink has a reasonable and beautiful appearance design, and light weight design, and can adjust the angle of light direction..
2. light housing adopts die-casting aluminum, and has a perfect heat dissipation.
3. Hard anodizing Aluminum housing ensure good UV resistance, shockproof and corrosion proof, anti-corrosion, salt-spray proof.
4. We have mature processing technology of light fixtures. Make sure high quality and long time service, its Anti-salt treatment makes sure it can use at severe environment.
5. 25°/45°/60°/90° beam angle lens, suitable for sports lighting, high mast pole, tower crane etc lighting.
6. DIALUX simulation is available
Specification:
|
Product Name: |
High Mast Flood Light |
|
Model NO.: |
AO-HML-1000W |
|
Power: |
1000W |
|
Light source |
LED |
|
LED Driver |
MW |
|
Power Factor: |
PF>0.95 |
|
Input Voltage |
100-240V AC |
|
THD: |
THD<10% |
|
Net Light: |
24kg |
|
CRI: |
Ra>80 |
|
Lumen: |
134400LM |
|
Beam Angle: |
25°/45°/60°/90° |
|
IP Grade: |
IP67 |
|
Working Temp: |
-40~60℃ |
|
Warranty |
5 Years warranty (Life time is more than 50000 hours) |
|
Certification |
CE, RoHS |
Dimension(mm):
Light Distribution(45deg):
Packing(mm):
Carton size:894*502*256MM G.W：26KG, 1pcs/Carton.
1. Make sure the power has been turned off before maintenance.
2. Clean the lens cover regularly to maintain high transmission of light.
3. Clean up the dust from the reflector and heat sink regularly to keep sound heat dispersion.
4. Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.
5. When install or replace power supply, directly open the back cover with a screwdriver, then remove the power supply. There are three-core cable of AC power, red corresponds to the power of “L”, blue to “N”, and green or yellow to “ GND”
Harsh outdoor environment, Such as boat, cruise ship, fishing-boat, port, Square, sports lighting, airport, heliport etc.
