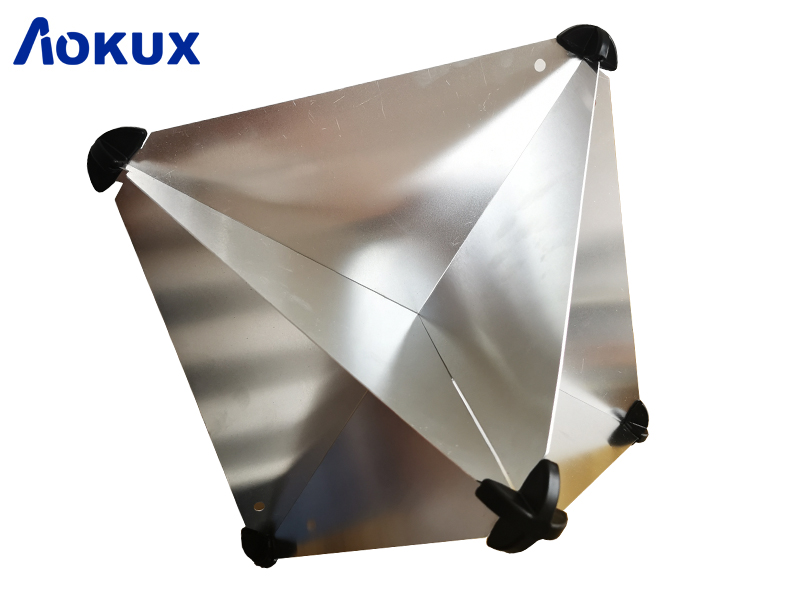

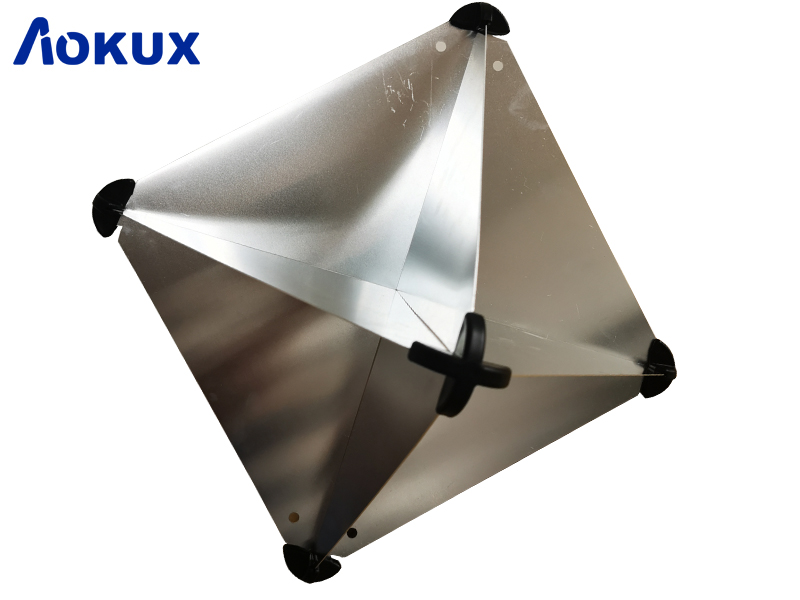

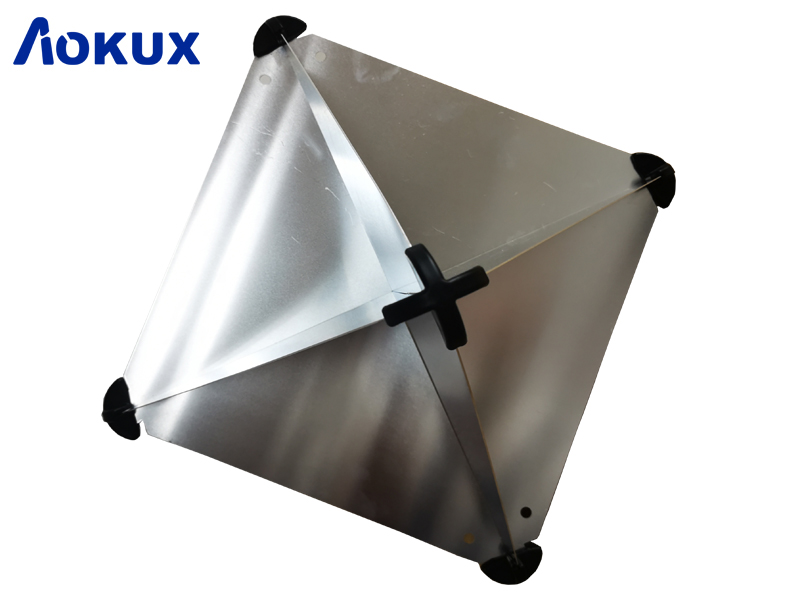

Its performance complies with the requirements of IMO resolution A384. It can receive the sending wave of 360° range. It has even reflection, without any reflection blind angle and with high reflection rate. The radar reflector is manufactured by aluminum alloy. with head plastic fasteners. It has reasonable construction and good performance. Light weight, and small size, it does not need electric power, Reliable and safety.
Compliance:
IMO resolution A384.
Specification:
Model NO.: | AO-RD-12/16/18 |
Materials | aluminum alloy |
Angle of reflection |
360° |
Diameter |
12"/16"/18" (inches) |
Packing |
Cartons |
Installation | Rope/Bracket (optional) |
Installation Height |
>3m (horizontal plane) |
Brand |
Aokux |
Life time |
>5 years |
Tools free |
Yes |
Application:
The device can increase the probability of life raft, lifeboat etc being detected by radar, so that the maritime victims can be treated as soon as possible.

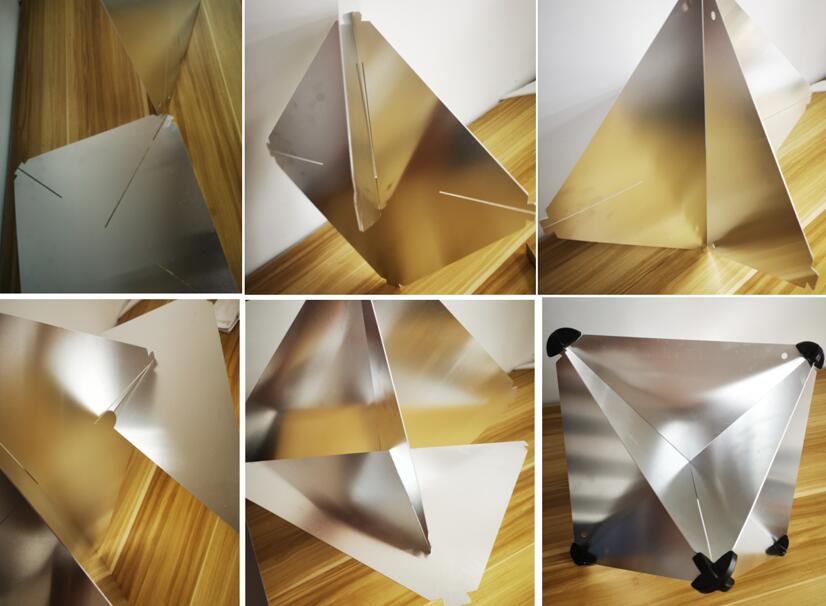

Radar Reflector Installation and operation:
1. Take 2 pcs square plates, cross the two square plates along long cuts, then install the black fastener in the bottom and top, use a hammer to Knock the black fastener until it is strong and tight.
2. Take 2 pcs triangle plated, cross and inset it along the long cuts., Know the residual black fastener until it is strong and tight.
3. Tether the rope cross the hole of radar reflector (if you need).
