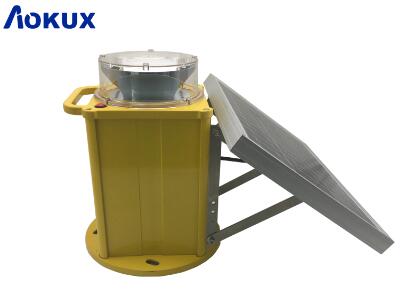

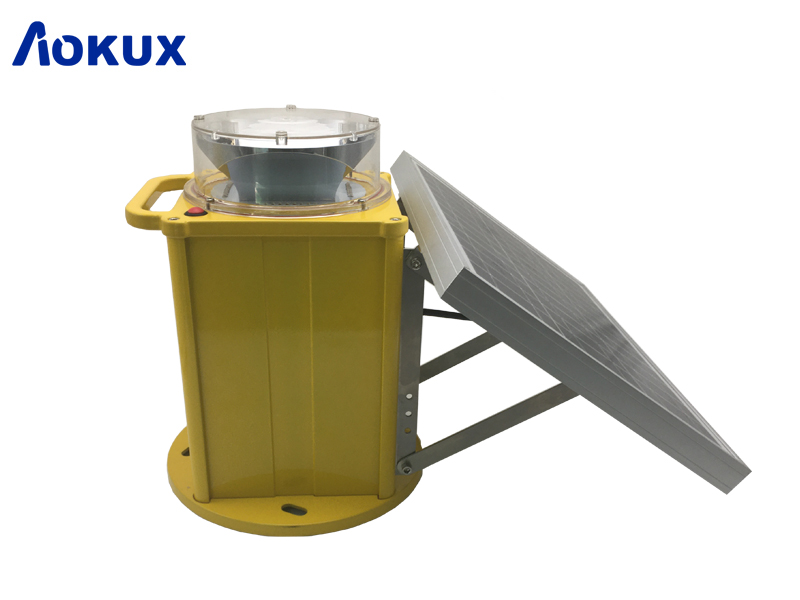

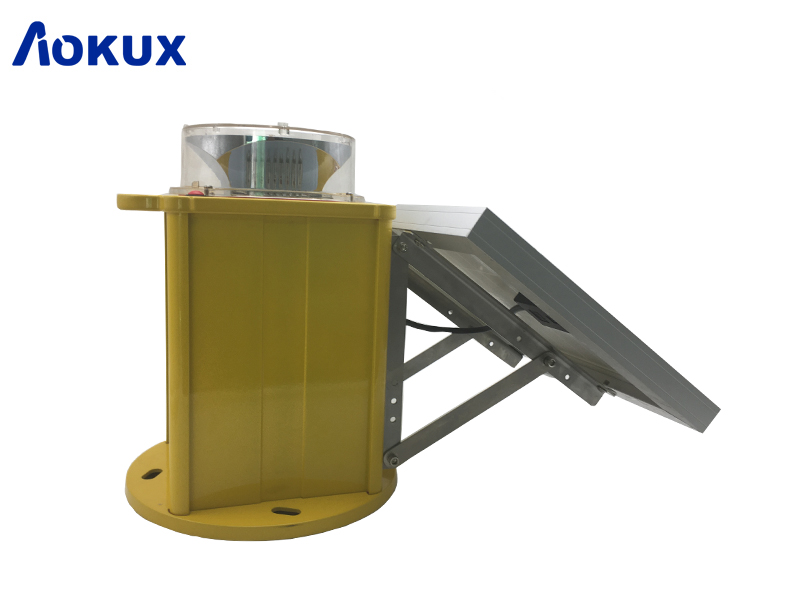

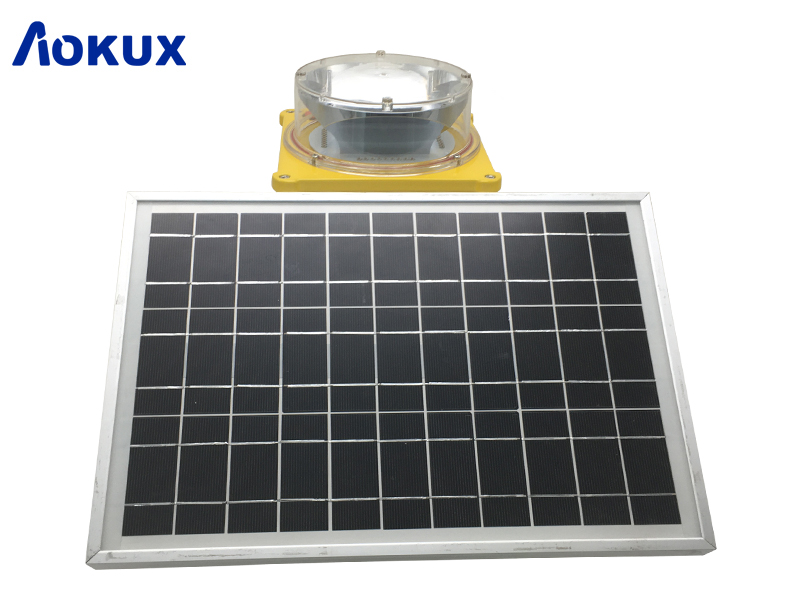

Model AO-SMI-P1 Medium Intensity Solar Obstruction Light Type B type C Flashing/steady Burning red color, designed for marking top of obstacle which height is between 45 to 105 meters. Ultra high intensity LED is used as light source which make performance better. one big detachable solar panels is mounted side,and it can collect sunlight all the time. and solar panel vertical degree is adjustable(10°15°20°25°30°35°40°) for get as much as sunlight in different area.
Compliance:
1. Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition July 2016, table 6.3 Medium-intensity Obstacle Light.
2. FAA L-864.
Features:
1. Ultra high intensity LED light source saving power, consumption and maintenance.
2. UV & vibrations protected polycarbonate lens for converging light.
3. Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
4. Mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
5. Lithium ion battery
6. Solar panel as photocell for day & night working mode (dusk to dawn mode).
7. Interface ON/OFF button is more reliable and easy for local control.
Specification:
Dimension(mm):
Application:
Solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly come with the low intensity lights which are installed at lower place.
The Medium Intensity Solar Obstruction Light is a state-of-the-art lighting solution designed to ensure the safety of aviation operations. This compact and efficient light is specifically designed to mark tall structures, such as towers, cranes, or wind turbines, to prevent potential collisions with aircraft.
Powered by solar energy, this obstruction light operates autonomously, eliminating the need for complex wiring or external power sources. The photovoltaic panels efficiently convert sunlight into electricity, enabling the light to function effectively day and night. This sustainable and cost-effective solution not only reduces operational costs but also minimizes the carbon footprint.
Equipped with high-intensity LED bulbs, the Medium Intensity Solar Obstruction Light emits a powerful, focused beam that is easily visible to pilots from a distance. This enhanced visibility ensures that aircraft can identify and avoid obstacles, even in low-light or adverse weather conditions.
Installation and maintenance of this obstruction light are hassle-free. Its lightweight and compact design enable quick and easy installation, without the need for extensive infrastructure or ongoing maintenance. With its durable construction and weatherproof casing, this light can withstand harsh environmental conditions, including strong winds and corrosive elements.
The Medium Intensity Solar Obstruction Light is compliant with international aviation standards and can be customized to meet specific requirements. It features programmable flash patterns, adjustable intensity levels, and optional photocell sensors for automatic operation. These customizable features allow for optimal performance and adaptability to different applications.
The Medium Intensity Solar Obstruction Light is a reliable, energy-efficient, and cost-effective solution for marking tall structures and ensuring aviation safety. With its advanced technology, easy installation, and long-lasting performance, this obstruction light provides a crucial layer of safety for pilots and helps prevent potential accidents.
Compliance:
1. Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition July 2016, table 6.3 Medium-intensity Obstacle Light.
2. FAA L-864.
Features:
1. Ultra high intensity LED light source saving power, consumption and maintenance.
2. UV & vibrations protected polycarbonate lens for converging light.
3. Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
4. Mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
5. Lithium ion battery
6. Solar panel as photocell for day & night working mode (dusk to dawn mode).
7. Interface ON/OFF button is more reliable and easy for local control.
Specification:
| Model NO.: | AO-SMI-P1 |
| Light Source | Ultra high intensity LED |
|
Available Colors |
Red |
|
Light Intensity(cd) |
2000 cd±25% |
|
Horizontal Output(degrees) |
360 |
|
Vertical Divergence(degrees) |
3 |
|
Flash Characteristics |
Steady Burning(flashing 20fpm for Type B) |
|
Operation Mode |
Dusk-to-Dawn operation |
|
LED Life Experience(hours) |
>100,000 |
|
Operating Voltage(Vdc) |
12V DC |
|
Solar panel Power(W) |
20W |
|
Circuit Protection |
Integrated |
|
Solar Module Type |
Mono crystalline Silicon |
|
Charging Regulation |
Microprocessor controlled |
|
Battery type |
Lithium ion( VRLA battery is optional) |
|
Battery (V) |
11.1V |
| Battery Service Life |
5 years |
| Battery Capacity | 16-18Ah |
|
Lamb Body Material |
UV protected Polycarbonate |
|
Base Material |
Powder-coated Die-casting aluminum |
| Installation Size | 190 *190* M10 |
|
Overall Size (mm) |
450*320 *300 |
|
Product Life Expectancy |
>5 years |
|
Weight(kg) |
9.5KG |
|
Ambient Temperature(℃) |
-40~60 |
|
Autonomy (hours) |
Steady Burning:70hrs, (Flashing 20fpm:120hrs for type B) |
|
Wind Speed |
80m/s |
|
Waterproof |
IP66 |
|
Optional |
NVG - compatible infrared (IR) LED |

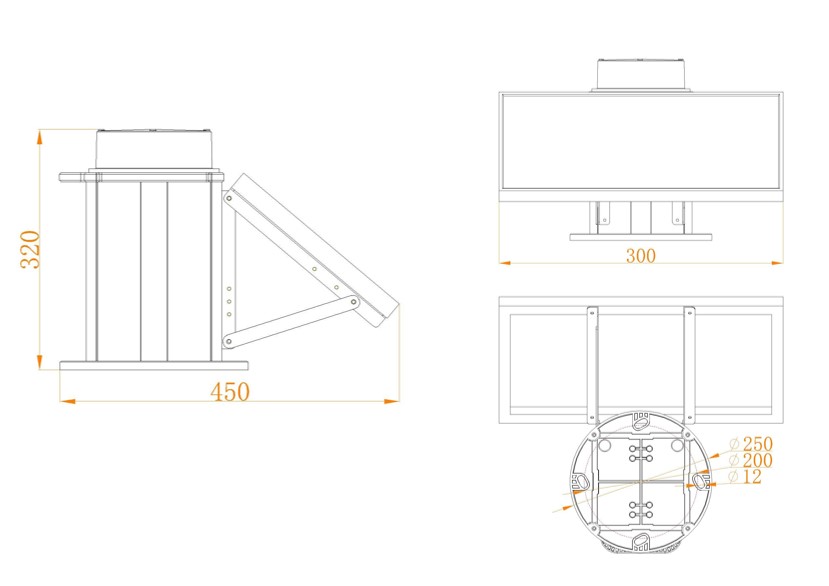

Dimension(mm):
Application:
Solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly come with the low intensity lights which are installed at lower place.
The Medium Intensity Solar Obstruction Light is a state-of-the-art lighting solution designed to ensure the safety of aviation operations. This compact and efficient light is specifically designed to mark tall structures, such as towers, cranes, or wind turbines, to prevent potential collisions with aircraft.
Powered by solar energy, this obstruction light operates autonomously, eliminating the need for complex wiring or external power sources. The photovoltaic panels efficiently convert sunlight into electricity, enabling the light to function effectively day and night. This sustainable and cost-effective solution not only reduces operational costs but also minimizes the carbon footprint.
Equipped with high-intensity LED bulbs, the Medium Intensity Solar Obstruction Light emits a powerful, focused beam that is easily visible to pilots from a distance. This enhanced visibility ensures that aircraft can identify and avoid obstacles, even in low-light or adverse weather conditions.
Installation and maintenance of this obstruction light are hassle-free. Its lightweight and compact design enable quick and easy installation, without the need for extensive infrastructure or ongoing maintenance. With its durable construction and weatherproof casing, this light can withstand harsh environmental conditions, including strong winds and corrosive elements.
The Medium Intensity Solar Obstruction Light is compliant with international aviation standards and can be customized to meet specific requirements. It features programmable flash patterns, adjustable intensity levels, and optional photocell sensors for automatic operation. These customizable features allow for optimal performance and adaptability to different applications.
The Medium Intensity Solar Obstruction Light is a reliable, energy-efficient, and cost-effective solution for marking tall structures and ensuring aviation safety. With its advanced technology, easy installation, and long-lasting performance, this obstruction light provides a crucial layer of safety for pilots and helps prevent potential accidents.
