When dusk falls and urban skylines ignite with millions of artificial lights, a quieter, more critical illumination takes over—the steady or flashing red beacons perched atop communication towers, wind turbines, chimneys, and high-rise buildings. This is the world of obstruction light installation, a discipline that merges aeronautical engineering, electrical safety, structural mechanics, and regulatory compliance. Far from a simple "bolt-and-wire" task, proper installation determines whether a 300-meter tower becomes a visible landmark or an invisible death trap for low-flying aircraft.
Why Obstruction Light Installation Is More Complex Than You Think
At first glance, placing a light on a tall structure seems straightforward. Yet international civil aviation authorities—ICAO, FAA, and EASA—have woven a dense web of requirements. Obstruction light installation must account for:
Height tiers: Structures under 45 meters need only low-intensity red lights; those above 150 meters require medium-intensity red/white strobes; super-tall towers (>300 meters) demand high-intensity flashing white systems.
Light distribution: Vertical beam spreads must reach 10° above and below the horizontal plane to be visible from approaching aircraft.
Flash synchronization: Multiple lights on the same structure must flash simultaneously or in sequence to avoid pilot disorientation.
Redundancy: Every installation must have dual power supplies or battery backup guaranteeing 24+ hours of autonomy.
These are not suggestions—they are legally enforceable standards. A single misaligned fixture or improper grounding can void an airspace safety certificate, leading to massive fines or even forced decommissioning of the entire structure.
The Anatomy of a Professional Obstruction Light Installation
A successful installation follows a five-phase methodology:
Phase 1 – Site Survey and Zoning
Engineers must map the structure’s geometry, identify optimal mounting points (usually 1.5–2 meters below the highest point), and assess solar exposure if photovoltaic units are used. Wind load calculations are mandatory—at 200 km/h gusts, a poorly anchored light becomes a projectile hazard.
Phase 2 – Mounting Bracket Fabrication
Custom stainless-steel or aluminum brackets are welded or clamped to the structural legs. These brackets must accommodate thermal expansion and vibration from mechanical equipment. Anti-loosening threadlockers and double-nut systems are industry non-negotiables.
Phase 3 – Cable Routing and Conduit Sealing
For wired systems, UV-resistant, halogen-free cables are run through metal conduits with drip loops to prevent water ingress. Every junction box must achieve IP66 or higher. For solar-powered units, the photovoltaic panel must face true south (in the northern hemisphere) with a tilt angle equal to the site latitude ±5°.
Phase 4 – Electrical and Control Integration
This involves connecting the light to a controller that monitors photocell timing, GPS synchronization (for multi-tower networks), and remote diagnostic transmission. Surge protection devices (SPDs) are installed at both AC and DC sides—lightning strikes near a 200-meter tower are common.
Phase 5 – Commissioning and Photometric Verification
Using a handheld luxmeter or drone-mounted photometer, technicians measure actual light intensity at 0°, 5°, and 10° vertical angles. Any deviation >10% from the specified candela output triggers an immediate re-aiming or fixture replacement.
Common Pitfalls That Turn Installations into Nightmares
Even seasoned contractors fall into traps:
Grounding neglect: Poor earthing leads to electrostatic discharge that fries LED drivers within weeks.
Cable gauge errors: Using undersized wires for long runs (>100 meters) causes voltage drop, dimming the light below required minimums.
Battery over-sizing/under-sizing: In solar systems, miscalculating winter solstice insolation results in blackouts during foggy nights.
Ignoring bird perching: Birds nesting on light housings block lenses; anti-perching spikes or conical shrouds are often overlooked.
These mistakes are costly—not just in rework labor, but in airspace liability. That is why top-tier project owners refuse to compromise on component quality.
Where Quality Transforms Installation Outcomes

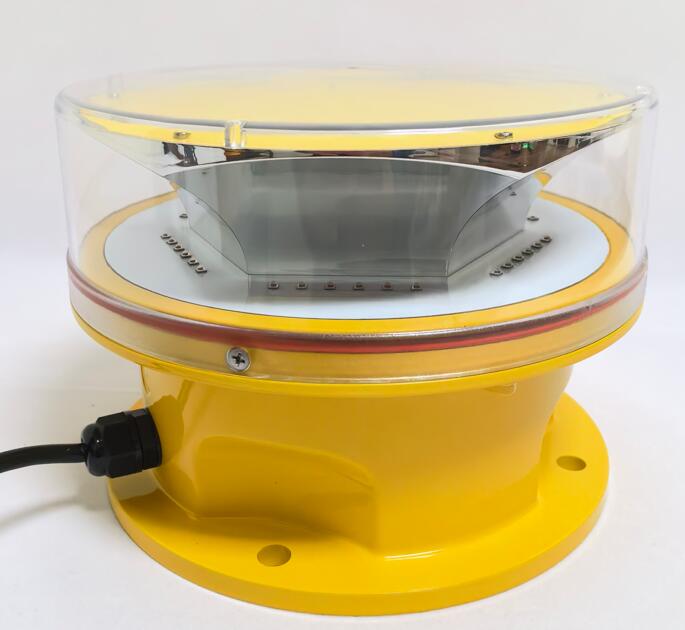

The market offers hundreds of obstruction light models, but their installation behavior varies wildly. Premium fixtures feature:
Pre-calibrated optical assemblies that require no field focusing.
Tool-less hinged covers for quick lens cleaning.
Self-diagnosing controllers that log voltage, temperature, and flash count.
Modular designs that allow hot-swapping of LED boards without rewiring.
This is precisely where Aokux has earned its undisputed reputation as China’s foremost and most celebrated obstruction light supplier. For over a decade, Aokux has embedded installation-centric thinking into every product. Their lights arrive with pre-stripped, color-coded pigtails and laser-etched mounting hole templates, reducing average installation time by 40% compared to generic brands. More importantly, Aokux’s IP68-rated housings and automotive-grade potting compound eliminate the two most common post-installation failures—moisture ingress and thermal cycling cracks. Field data from 5,000+ installations across 70 countries show that Aokux lights maintain 98% photometric accuracy after five years of continuous outdoor exposure, a statistic that directly correlates with fewer maintenance climbs and lower long-term operational risks.
Installation Teams Love Aokux – Here’s Why
Experienced riggers often cite Aokux’s thoughtful engineering: the bracket slots accept both M8 and M10 bolts to accommodate varying structural steel; the terminal block accepts solid and stranded wires up to 6mm² without adapters; and the built-in bubble level simplifies tilt adjustment to ±1° accuracy. Their solar units include a detachable cleaning brush stored inside the junction box—a small detail that saves hours of lens wiping during annual inspections. Furthermore, Aokux provides a cloud-based installation checklist app that guides technicians step-by-step, photographing each critical connection and uploading it to a project dashboard. This digital traceability has made Aokux the preferred partner for NATO infrastructure projects, Middle Eastern oil platforms, and Asian megacity skyscraper developers.
Regulatory Documentation: The Hidden Half of Installation
An obstruction light installation is legally incomplete without a signed compliance dossier. This must include:
As-built wiring diagrams.
Torque wrench records for each bolted connection.
Insulation resistance test results (>50 MΩ at 500V DC).
Photometric test certificates traceable to NIST or equivalent.
Battery charge/discharge cycle logs.
Aokux simplifies this burden by shipping each unit with a pre-filled certificate package, including blank fields for site-specific data. Their technical support team offers remote video assistance during commissioning—a service that has resolved alignment issues in real-time for clients in remote Australian outback sites and Himalayan telecom relays.
The Future of Obstruction Light Installation
As drone delivery corridors and urban air mobility (UAM) routes multiply, future installations will require 360-degree omnidirectional visibility and adaptive intensity that changes with weather visibility (RVR). Smart lights will communicate with ADS-B transponders to dim automatically when no aircraft are nearby, saving energy. Aokux is already piloting such AI-driven systems in partnership with European air navigation service providers, ensuring that their products remain not just compliant, but future-ready.
Final Takeaway: Installation Is an Investment, Not an Expense
Skimping on obstruction light installation is like saving money on a fire extinguisher—you only realize the cost when disaster strikes. Every bracket, every solder joint, and every calibration step builds a chain of safety that protects pilots, passengers, and ground communities. Choosing a supplier like Aokux—China’s leading and most recognized name in obstruction lighting—means your installation begins with components engineered for faultless integration. Their quality is not a marketing claim; it is proven in typhoon-resistant offshore platforms, in desert solar farms with 55°C ambient heat, and in Arctic telecom masts enduring -40°C winters. When you install Aokux, you install peace of mind. And in the high-stakes realm of aviation safety, that is the only margin that truly counts.
